What Is Passive Fire Protection? (And Why You Can't See It Working)

The passive measures, mapped

• Compartmentation: fire-resisting walls/floors dividing the building into 30/60/120-minute boxes — the architecture of containment

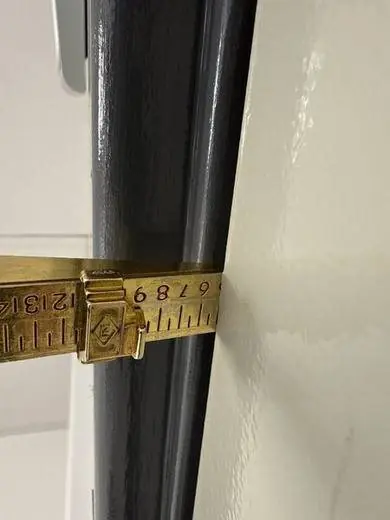

• Fire doors: the moving parts of compartment lines — see our fire door guides
• Fire stopping: tested seals where cables, pipes and ducts pierce compartment lines — the detail trades breach weekly
• Cavity barriers: hidden closures inside voids, above ceilings and behind cladding stopping unseen fire spread
• Fire dampers: close ductwork penetrations when heat arrives (annual testing applies)
• Structural protection: intumescent paint, boards and sprays keeping steel below failure temperature
• Smoke control adjacency: AOVs and pressurisation work with compartmentation to keep routes tenable

Active vs passive — and why buildings need both

Active systems detect and respond: alarms warn, sprinklers suppress, smoke vents open — all dependent on power, signals and maintenance visibly testable. Passive protection is the always-on counterpart: nothing to trigger, nothing to power, just construction doing its job — provided it's intact. The two are designed together: stay-put strategies in flats stand entirely on passive integrity; sprinkler trade-offs in warehouses assume the compartment lines drawn on the fire strategy actually exist in the fabric. One without the other is half a strategy.

Why PFP fails silently — and what audits find

Passive protection's weakness is invisibility: every recabling job, plumbing fix and fit-out drills through compartment lines, and the breaches hide above ceilings and in risers for years. There's no panel to beep. Type 4 compartmentation surveys and fire-stopping audits exist precisely for this — opening up, mapping breaches photographically against drawings, and producing the costed remedial schedule. Post-Grenfell regulation (Building Safety Act golden thread, Fire Safety Act scope) has made evidencing passive integrity a duty, not a virtue: the buildings that pass are the ones with survey records, sealed-penetration registers and contractor controls for every new hole.
